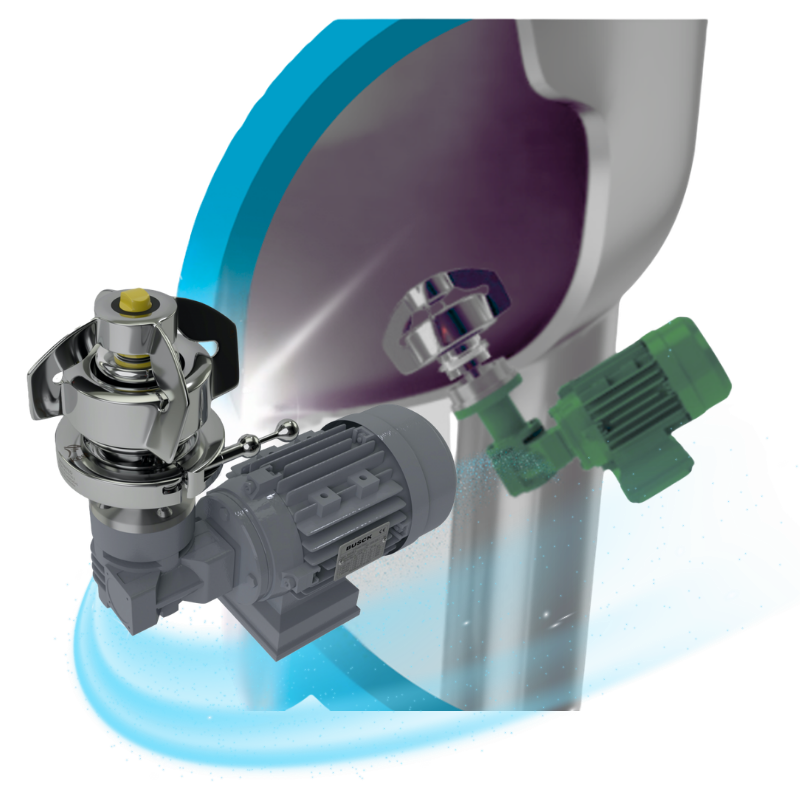

Designed to maximize product recovery, eliminate particle generation, and deliver consistent mixing performance, Bottom Mounted Magnetic Mixers support everything from laboratory development to full-scale GMP production.

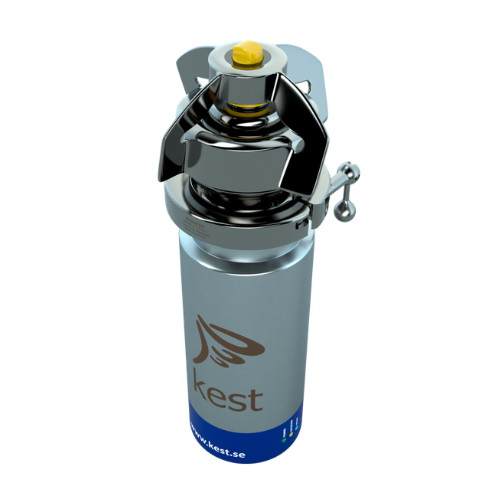

ProFlow Mixer – KMPF
Features
- The range covers up to 1200 Liters
- Reduces energy consumption with up to 80%
- All tank plates are FEM analyzed according to PED and ASTM
- Welding tool available (recommended)
- Full traceability on all parts in media contact
- 3.1 material certificate on all parts in media contact
- Elastomers approved acc. FDA regulation CFR 177.2600, USP Class VI
Technical specifications
| Particulars | ProFlow 0/3 | ProFlow 3/7 | ProFlow 7/20 | ProFlow 20/70 | ProFlow 70/120 |
|---|---|---|---|---|---|
|
Mixing volume (at viscosity 1 cP) |
30 Liter (8 Gallon) |
70 Liter (18.5 Gallon) |
200 Liter (53 Gallon) |
700 Liter (185 Gallon) |
1200 Liter (317 Gallon) |
| Viscosity range | 1 - 800 cP | ||||
| Speed range | 50 - 680 RPM | 50 - 490 RPM | |||
| Temperature range |
Inside tank
Design Temperature 0°C to +150°C / +32°F to +302°F Operating temperature 0°C to +135°C / +32°F to +275°F Outside tank 0°C to +40°C / +32°F to +104°F |
||||
| Motor power | 63 W | 754 W | |||
| Drive unit weight |
2.5 kg (5.5 lb) |
3.0 kg (6.6 lb) |
3.5 kg (7.7 lb) |
6.2 kg (13.7 lb) |
6.4 kg (14.1 lb) |
| Electric supply | 24 VDC (3.5 A) | 48 VDC (18 A) | |||

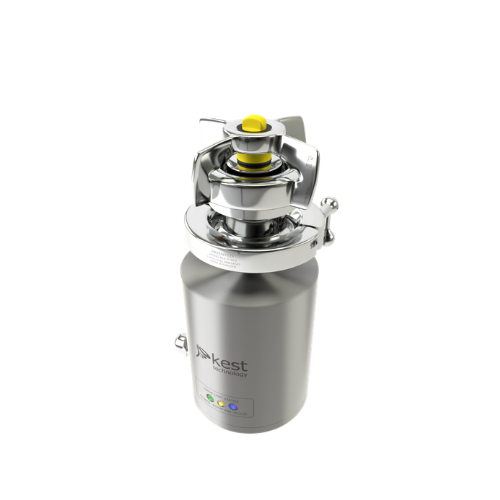

KEST MIXER SMALL VOLUME – KMS
Features
- The range covers up to 200 Liters
- All tank plates are FEM analyzed according to PED and ASTM
- Welding tool available (recommended)
- Full traceability on all parts in media contact
- 3.1 material certificate on all parts in media contact
- Elastomers approved acc. FDA regulation CFR 177.2600, USP Class VI
Technical specifications
| Particulars | 0/3 | 3/7 | 7/20 |
|---|---|---|---|
|
Mixing Volume (at viscosity 1 cP) |
30 Liter (8 Gallon) |
70 Liter (18.5 Gallon) |
200 Liter (53 Gallon) |
| Viscosity Range | 1 - 800 cP | ||
| Speed Range | 50 - 680 RPM | 50 - 490 RPM | |
| Temperature Range |
Inside tank
Design Temperature 0°C to +150°C / +32°F to +302°F Operating temperature 0°C to +135°C / +32°F to +275°F Outside tank 0°C to +40°C / +32°F to +104°F |
||
| Motor Power | 63 W | ||
| Drive Unit Weight |
2.5 kg (5.5 lb) |
3.0 kg (6.6 lb) |
3.5 kg (7.7 lb) |
| Electric Supply | 24 VDC (3.5 A) | ||

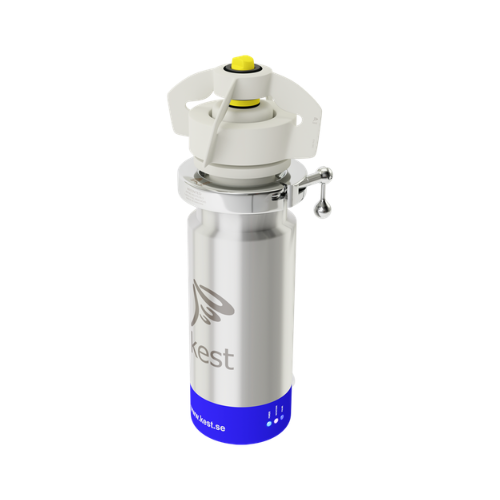

Kest Mixer Polymer Line – Pline
Features
- The range covers up to 1200 Liters
- Full traceability on all parts in media contact
- 2.1 material certificate on all parts in media contact
- Elastomers approved acc. FDA, USP Class VI
Technical specifications
| Particulars | 0/3 | 3/7 | 7/20 | 20/70 | 70/120 |
|---|---|---|---|---|---|
|
Mixing Volume (at viscosity 1cP) |
30 Liter (8 Gallon) |
70 Liter (18.5 Gallon) |
200 Liter (53 Gallon) |
700 Liter (185 Gallon) |
1200 Liter (317 Gallon) |
| Viscosity Range | 1 - 800 cP | ||||
| Speed range | 50 - 680 RPM | 50 - 490 RPM | |||
|
Temperature Range |
Inside tank
Operating temperature 0°C to +60°C / +32°F to +140°F |
||||
| Motor Power | 63 W | 754 W | |||
| Drive Unit Weight |
2.5 kg (5.5 lb) |
3.0 kg (6.6 lb) |
3.5 kg 7.7 lb |
6.2 kg (13.7 lb) |
6.4 kg (14.1 lb) |
| Electric Supply |
24 VDC (3.5 A) |
48 VDC (18 A) |
|||

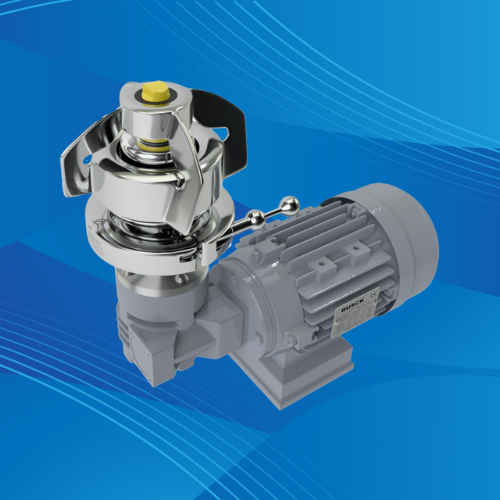

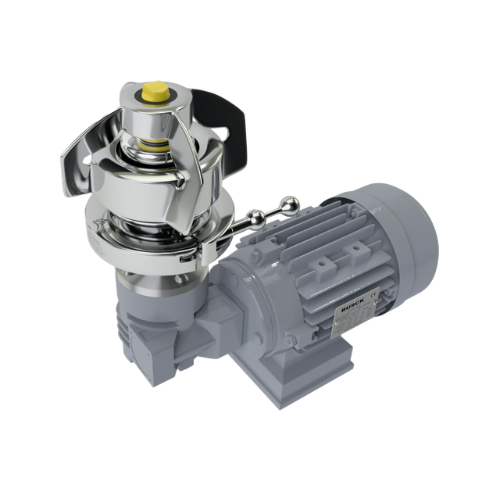

Kest Mixer – KM
Features
- The range covers up to 22 000 Liters
- All tank plates are FEM analyzed according to PED and ASTM
- Welding tool available (recommended)
- Full traceability on all parts in media contact
- 3.1 material certificate on all parts in media contact
- Elastomers approved acc. FDA regulation CFR 177.2600, USP Class VI
Technical specifications
| Particulars | 0/3 | 3/7 | 7/20 | 20/70 | 70/120 | 120/230 | 230/600 | 600/1300 | 1300/2200 |
|---|---|---|---|---|---|---|---|---|---|
|
Mixing Volume (at viscosity 1cP) |
30 Liter (8 Gallon) |
70 Liter (18.5 Gallon) |
200 Liter (53 Gallon) |
700 Liter (185 Gallon) |
1200 Liter (317 Gallon) |
2300 Liter (608 Gallon) |
6000 Liter (1585 Gallon) |
13000 Liter (3434 Gallon) |
22000 Liter (5812 Gallon) |
| Viscosity Range | 1 - 800 cP | ||||||||
| Speed range | 50 - 490 RPM |
35 - 340 RPM |
|||||||
|
Temperature Range |
Inside tank
Design Temperature 0°C to +150°C / +32°F to +302°F Operating temperature 0°C to +135°C / +32°F to +275°F Outside tank 0°C to +40°C / +32°F to +104°F |
||||||||
| Motor Power | 250 W | 550 W | 750 W | 1100 W | 1500 W | 3000 W | |||
|
Drive Unit Weight |
7.0 kg 15.4 lb |
7.1 kg 15.7 lb |
7.4 kg 16.3 lb |
7.5 kg 16.5 lb |
10.6 kg 23.4 lb |
15.4 kg 34.0 lb |
19.6 kg 43.2 lb |
24.5 kg 54.0 lb |
45.0 kg 99.2 lb |
|
Electric Supply |
230 V / 1.3 A 400 V / 0.75 A |
230 V / 2.4 A 400 V / 1.4 A |
230 V / 3.3 A 400 V / 1.9 A |
230 V / 4.7 A 400 V / 2.7 A |
230 V / 6.2 A 400 V / 3.6 A |
230 V / 11.8 A 400 V / 6.8 A |
|||

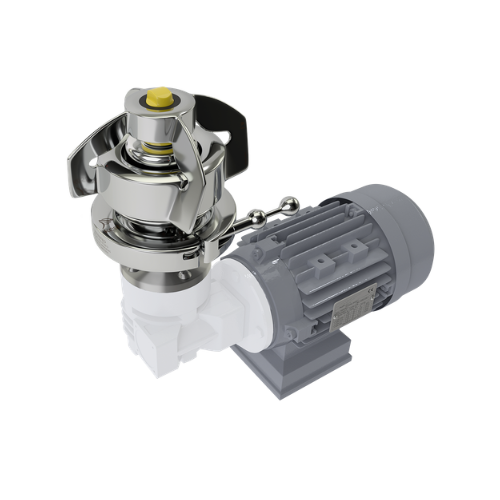

KEST MIXER ATEX – KM ATEX
Features
- The range covers up to 22 000 Liters or 5812 Gallon
- ATEX Zone 1 and 21
- All tank plates are FEM analyzed according to PED and ASTM
- Welding tool available
- Full traceability on all parts in media contact
- 3.1 material certificate on all parts in media contact
- Elastomers approved acc. FDA regulation CFR 177.2600, USP Class VI
Technical specifications
| Particulars | 0/3 | 3/7 | 7/20 | 20/70 | 70/120 | 120/230 | 230/600 | 600/1300 | 1300/2200 |
|---|---|---|---|---|---|---|---|---|---|
|
Mixing Volume (at viscosity 1cP) |
30 Liter (8 Gallon) |
70 Liter (18.5 Gallon) |
200 Liter (53 Gallon) |
700 Liter (185 Gallon) |
1200 Liter (317 Gallon) |
2300 Liter (608 Gallon) |
6000 Liter (1585 Gallon) |
13000 Liter (3434 Gallon) |
22000 Liter (5812 Gallon) |
|
Viscosity Range |
1 - 800 cP | ||||||||
| Speed range | 50 - 490 RPM |
35 - 340 RPM |
|||||||
|
Temperature Range |
Inside tank
Design Temperature 0°C to +150°C / +32°F to +302°F Operating temperature 0°C to +135°C / +32°F to +275°F Outside tank 0°C to +40°C / +32°F to +104°F |
||||||||
| Motor Power | 250 W | 550 W | 750 W | 1100 W | 1500 W | 3000 W | |||
|
Drive Unit Weight |
7.0 kg 15.4 lb |
7.1 kg 15.7 lb |
7.4 kg 16.3 lb |
7.5 kg 16.5 lb |
10.6 kg 23.4 lb |
15.4 kg 34.0 lb |
19.6 kg 43.2 lb |
24.5 kg 54.0 lb |
45.0 kg 99.2 lb |
|
Electric Supply |
230 V / 1.3 A 400 V / 0.75 A |
230 V / 2.4 A 400 V / 1.4 A |
230 V / 3.3 A 400 V / 1.9 A |
230 V / 4.7 A 400 V / 2.7 A |
230 V / 6.2 A 400 V / 3.6 A |
230 V / 11.8 A 400 V / 6.8 A |
|||

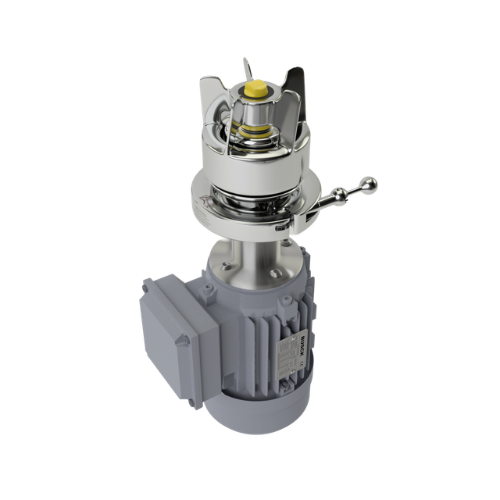

KEST MIXER RAPID MOTION – RM
Features
- The range covers up to 8 000 Liters
- All tank plates are FEM analyzed according to PED and ASTM
- Welding tool available (recommended)
- Full traceability on all parts in media contact
- 3.1 material certificate on all parts in media contact
- Elastomers approved acc. FDA regulation CFR 177.2600, USP Class VI
Technical Specifications
| Particulars | RM01 | RM03 | RM06 |
|---|---|---|---|
|
Mixing Volume (at viscosity 1cP) |
560 Liter (148 Gallon) |
2300 Liter (608 Gallon) |
8000 Liter (2113 Gallon) |
| Viscosity Range | 1 - 800 cP | ||
| Speed range | 270 - 1350 RPM | 270 - 1420 RPM | 270 - 1435 RPM |
| Temperature Range |
Inside tank
Design Temperature 0°C to +150°C / +32°F to +302°F Operating temperature 0°C to +135°C / +32°F to +275°F Outside tank 0°C to +40°C / +32°F to +104°F |
||
| Motor Power | 180 W | 750 W | 4000 W |
| Drive Unit Weight |
5.4 kg 11.9 lb |
11.0 kg 24.3 lb |
36.0 kg 79.4 lb |
| Electric Supply |
230 V / 1.17 A 400 V / 0.68 A |
230 V / 3.08 A 400 V / 1.79 A |
230 V / 14.37 A 400 V / 8.26 A |

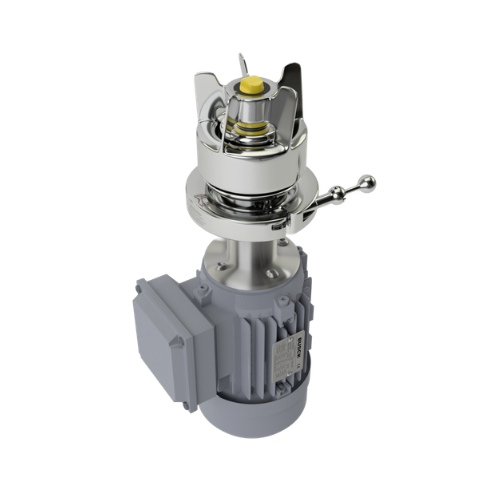

KEST MIXER RAPID MOTION ATEX – RM ATEX
Features
- The range covers up to 8 000 Liters
- All tank plates are FEM analyzed according to PED and ASTM
- Welding tool available (recommended)
- Full traceability on all parts in media contact
- 3.1 material certificate on all parts in media contact
- Elastomers approved acc. FDA regulation CFR 177.2600, USP Class VI
Technical Specifications
| Particulars | RM01 | RM03 | RM06 |
|---|---|---|---|
|
Mixing Volume (at viscosity 1cP) |
560 Liter (148 Gallon) |
2300 Liter (608 Gallon) |
8000 Liter (2113 Gallon) |
| Viscosity Range | 1 - 800 cP | ||
| Speed range | 270 - 1350 RPM | 270 - 1420 RPM | 270 - 1435 RPM |
| Temperature Range |
Inside tank
Design Temperature 0°C to +150°C / +32°F to +302°F Operating temperature 0°C to +135°C / +32°F to +275°F Outside tank 0°C to +40°C / +32°F to +104°F |
||
| Motor Power | 180 W | 750 W | 4000 W |
| Drive Unit Weight |
5.4 kg 11.9 lb |
11.0 kg 24.3 lb |
36.0 kg 79.4 lb |
| Electric Supply |
230 V / 1.17 A 400 V / 0.68 A |
230 V / 3.08 A 400 V / 1.79 A |
230 V / 14.37 A 400 V / 8.26 A |

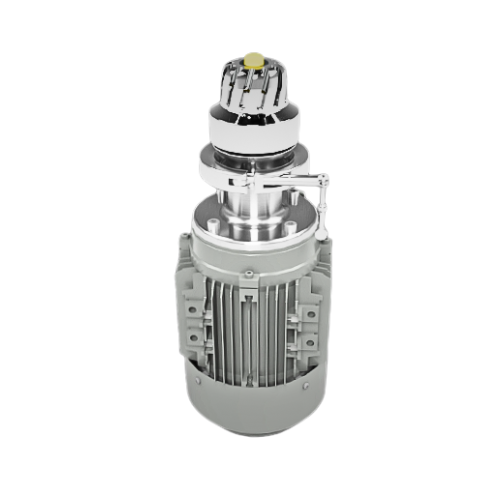

KEST HIGH SHEAR MIXER (HS)
Features
- Mixing volumes from 1 to 1,500 litres, with three mixer sizes covering different process scales.
- Specially designed for demanding High-shear applications such as homogenization
- High shear rates up to 17,900 sâ»Â¹ with maximum tip speeds up to 17.9 m/s depending on model.
- FDA CFR 177.2600 and USP Class VI compliant sealing materials available in EPDM or silicone.
- External testing according to USP <788> reported no detectable particles from the bearing.
- CFD analysis support available to evaluate flow patterns, dead zones, vortex formation, mixer placement and speed before finalising the system.
Technical specifications
| Particulars | HS-01 | HS-03 | HS-06 |
|---|---|---|---|
| Mixing Volume (at viscosity 1 cP) | 1–75 L | 75–500 L | 500–1,500 L |
| Viscosity Range | Up to 800 cP | ||
| Speed Range | 350–2,800 RPM | ||
| Temperature Range – Product Contact |
Inside Tank
Design: 0°C to +150°C / +32°F to +302°F Operating: 0°C to +135°C / +32°F to +275°F Outside Tank 0°C to +40°C / +32°F to +104°F |
||
| Motor Power | 0.25 kW | 1.5 kW | 7.5 kW |
| Drive Unit Weight* | 5.4 kg | 11 kg | 36 kg |
| Electric Supply | 230/400 V, 50/60 Hz | ||
